Claron Double Acting Piston Seals
Claron SPS SealClaron SPG SealClaron CS5 Series Seal
The links below open Acrobat PDF files.
If you don't have Acrobat Reader, click here
Click Here To Download Free Adobe Acrobat Reader Software
To download the FULL Claron Catalogue. Click Here (5.3 MB)
Click on the profiles shown below for further information in Adobe Acrobat Form
Catalogue
Style
Profile

Description & Materials

Temp
Range 		Max
Pressure 		Max
Speed

CLICK BELOW
   °C Bar M/Sec.
A1
 SPS Claron SPS Seals Page  Double acting NBR piston seal for one piece pistons, incorporating Polyester anti extrususion rings & POM bearing rings -30 to 100 500 0.5
A2 SPS
 Claron SPS 200 Bar Series		 Double acting NBR piston seal for one piece pistons, incorporating P.T.F.E. anti extrususion rings & POM bearing rings. -30 to 100 250 0.5
A3 DP
Claron DP Series Seals		 Double acting NBR piston seal with rubberised fabric reinforcement. -30 to 100 400 0.5
A4 DPE Claron DPE Series Seals Double acting NBR piston seal with rubberised fabric reinforcement & clip on POM anti-extrusion rings. -30 to 100 400 0.5
A5 DPW
Claron DPW Series Seals		 Double acting NBR piston seal with rubberised fabric reinforcement & clip on POM anti-extrusion Bearing rings. -30 to 100 400 0.5
A6 DPW.../L  Claron DPW.../L Series Seals Double acting NBR piston seal with rubberised fabric reinforcement & full width POM anti-extrusion Bearing rings. -30 to 100 400 0.5
A7 JS.../H Claron JS.../H Series Seals Double Acting NBR piston seal with Polyester anti-extrusion headers -30 to 100 600

0.5
A8 DPDS Claron DPDS Series Seals Double acting NBR piston seal for one piece pistons, incorporating Hytrel anti extrususion rings & POM bearing rings -30 to 100 600 0.5
A9 SFD
 Claron SFD Series Seals		 Double acting NBR rubberised fabric piston seal incorporating POM anti extrusion header. -30 to 100 600 1
A10 PRF / PFD
Claron PRF / PFD Series Seals 		Double acting NBR rubberised fabric piston seal incorporating POM or NBR filler ring. -30 to 100 400 0.5
A11 SPW
Claron SPW Series Seals		 Double acting NBR energised Bronze filled PTFE piston seal for one piece pistons, incorporating MoS2 filled PA anti extrusion rings. -30 to 100 500 5
A12 CSPG
 Claron CSPG Series Seals		 Double acting NBR energised Glass filled PTFE piston seal for one piece pistons. -40 to 120 800 15
A13 CS8
Claron CS8 Series Seals 		Double acting NBR energised 98° Shore AU piston seal for one piece pistons to Europesn housings -30 to 100 450 0.5
A14 CSPGI Claron CSPGI Series Seals Double acting NBR energised 98° Shore AU piston seal for one piece pistons to Japanese housings -30 to 100 450 0.5

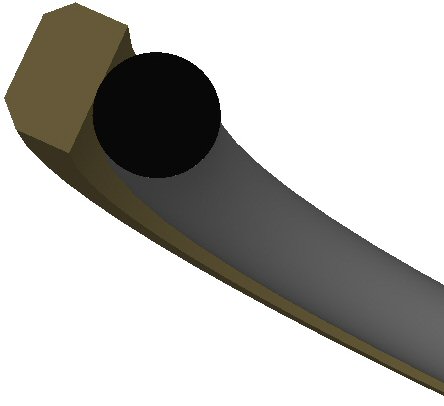

A15 CS 5
 Claron CS5 Series Seals		 Double acting NBR energised Bronze filled PTFE piston seal for one piece pistons. -50 to 200 800 15

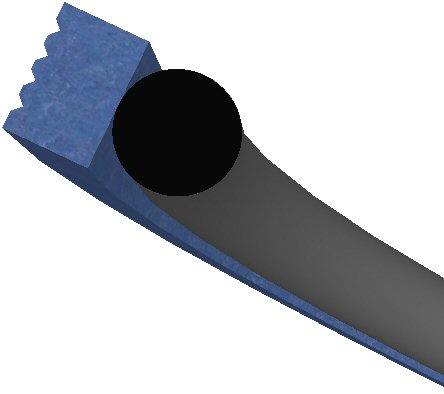

A15 841
Claron 841 Series Seals		 Double acting NBR energised Bronze filled PTFE piston seal for one piece pistons. -50 to 200 800 15

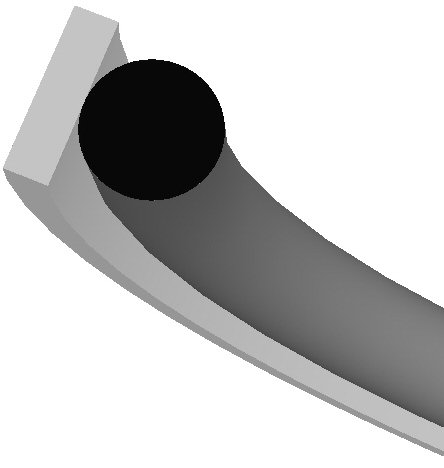

A16 CS2 / CS4
Claron CS2 CS4 Series Seals		 Double acting NBR energised PTFE piston seal for one piece pistons. -50 to 200 350 5
A17 D-Ring Claron D-Ring Series Seals Double acting NBR energised Bronze filled PTFE piston seal for one piece pistons to Japanese sizes -50 to 200 800 15

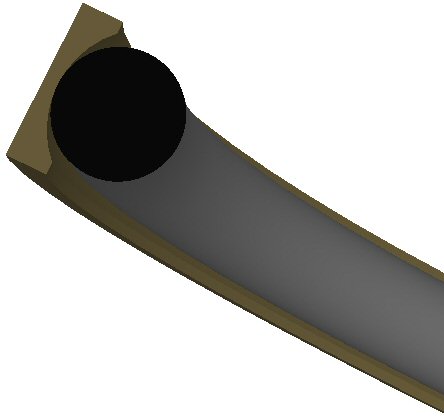

A18 DSE
 Claron DSE Series Seals		 Double acting NBR energised PTFE piston seal for O-Ring housings to BS1806 & BS4518. -50 to 200 350 5

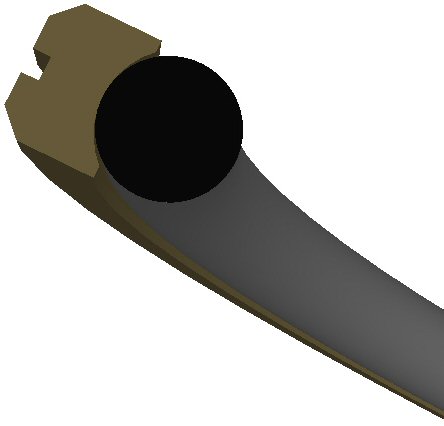

A19 RPS
 Claron RPS Series Seals		 Double acting NBR energised PTFE rotary piston seal. -54 to 180 300 2
