Single acting U-Section AU piston / rod seal.

- Design -

The Claron style CPU is a symmetrical profiled lip seal manufactured in a high performance grade of Polyurethane and is suitable for both piston and rod sealing. The sealing lips are machine trimmed to ensure dimensional consistency and good low pressure sealing. Polyurethane exhibits outstanding abrasion and extrusion resistance.

- Operating Conditions -

Maximum Pressure

Max Speed	Temp. Range	Temp. Range
m/s	-40°C to 80°C	-40°C to 110°C
0,5	280 Bar	250 Bar
0,15	400 Bar	350 Bar

These range perameters are Maximum simultaneous conditions.
Optimum service conditions are affected by temperature, speed, pressure, surface finish and extrusion gaps.

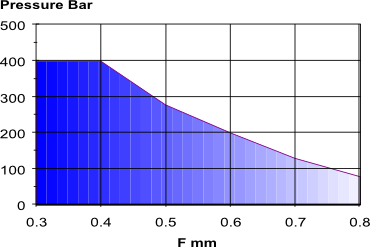

Note: Clearance gap F is the maximum permissable. i.e. gap completely on one side, in the temperature range of -30°C to 80°C
The use of a suitably selected Claron bearing ring will effectively reduce the clearance gap F max. to a value closer to F/2 thus increasing the pressure capability of the seal.

- Housing -

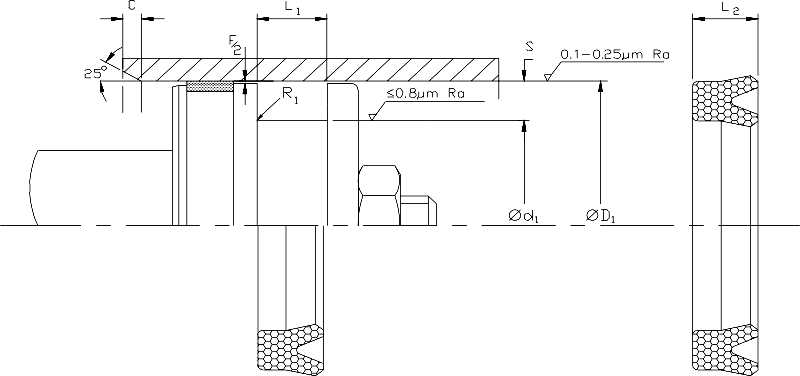

For surface finish and recommended lead in chamfers refer the illustration below. For housing dimensions and machining tolerances refer to the table of recommended sizes and Tolerance Tables for value of tolerence symbols

- Fitting -

For the seal to function correctly, it is important that care be taken in fitting the seal within its housing. For details refer to Seal Installation.
