PFP

Twinlip metal cased AU medium to heavy duty Press fit rod wiper.

- Design -


Claron Style PFP double acting Rod wiper is designed to remove potential system contaminents from a reciprocating rod during the negative stroke and to assist sealing by collecting the fluid film on the positive stroke. It is classified as a heavy duty rod wiper. The wiper is precision moulded in 92o Shore A Polyurethane with an accurately machined lip. The wiper has a metal case designed to press fit in the housing thus retaining the wiper. The press fit design of this wiper allows it to be used in a simple open ended housing. The sizes are to common Japanese housing standards.
Claron Wiper Seals Style PFP should not be utilised in combination with double-acting Rod seals unless the housing design allows for pressure relief between the wiper and the seal.

- Operating Conditions -


Maximum Pressure

Temp. Range
-40°C to 110°C
Max Linear Speed m/s
3
These range perameters are Maximum simultaneous conditions.
Optimum service conditions are affected by temperature, speed, pressure, surface finish and extrusion gaps.

- Housing -

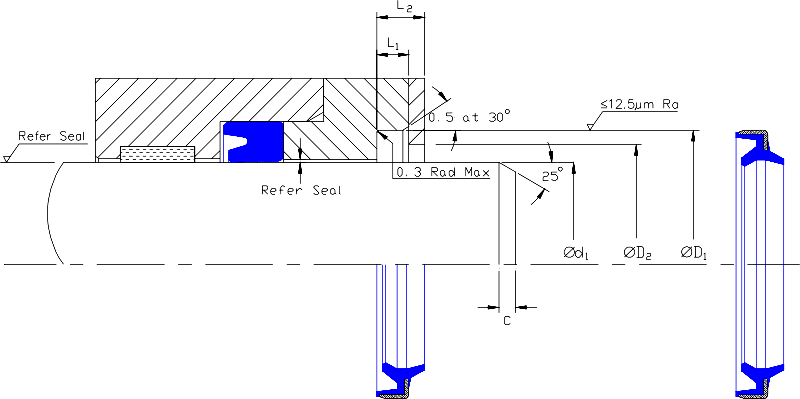

For surface finish and recommended lead in chamfers refer the illustration below. For housing dimensions and machining tolerances refer to the table of recommended sizes and Tolerance Tables for value of tolerence symbols



- Fitting -


Style PFP is designed to press fit into an open ended housing. For the seal to function correctly, it is important that care be taken in fitting the seal within its housing. For details refer to Seal Installation.
