Single lip AU medium to heavy duty rod wiper.

- Design -

Claron Style UPWM Rod wiper is designed to remove potential system contaminents from a reciprocating rod during the negative stroke. It is classified as a medium to heavy duty wiper and is precision moulded in 92° Shore A Polyurethane. The wiper is machine trimmed to provide a precise wiping lip.

- Operating Conditions -

Maximum Pressure

Temp. Range
-40°C to 110°C
Max Linear Speed m/s
These range perameters are Maximum simultaneous conditions.
Optimum service conditions are affected by temperature, speed, pressure, surface finish and extrusion gaps.

- Housing -

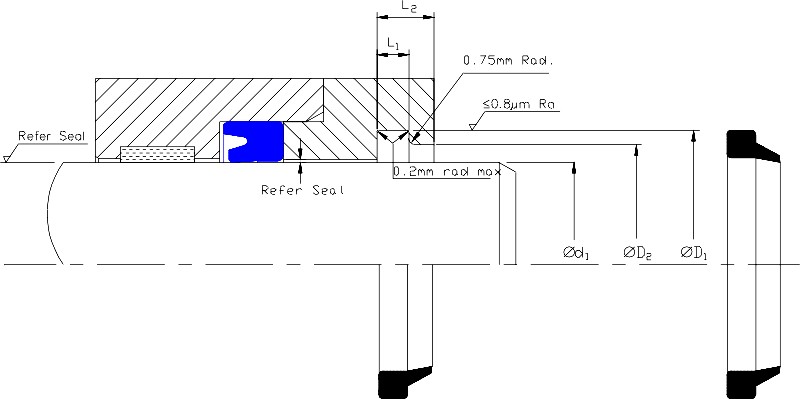

For surface finish and recommended lead in chamfers refer the illustration below. For housing dimensions and machining tolerances refer to the table of recommended sizes and Tolerance Tables for value of tolerence symbols

- Fitting -

Style UPWM may be deformed and fitted into a closed groove housing as shown below. For the seal to function correctly, it is important that care be taken in fitting the seal within its housing. For details refer to Seal Installation.
