DPW/L

Double acting NBR piston seal with rubberised fabric reinforcement & full width POM anti-extrusion Bearing rings.

- Design -


Designed for use on one piece pistons, the three part assembly consists of an endless precision rubber moulded sealing element supported at each end with split polyester support rings.
The seal is also suitable for existing two piece pistons of the same housing dimensions.

- Operating Conditions -


Maximum Pressure

Max Speed
Temp. Range

m/s
-30°C to 100°C

0,5
250 Bar

0,15
400 Bar

These range perameters are Maximum simultaneous conditions.
Optimum service conditions are affected by temperature, speed, pressure, surface finish and extrusion gaps.

- Housing -

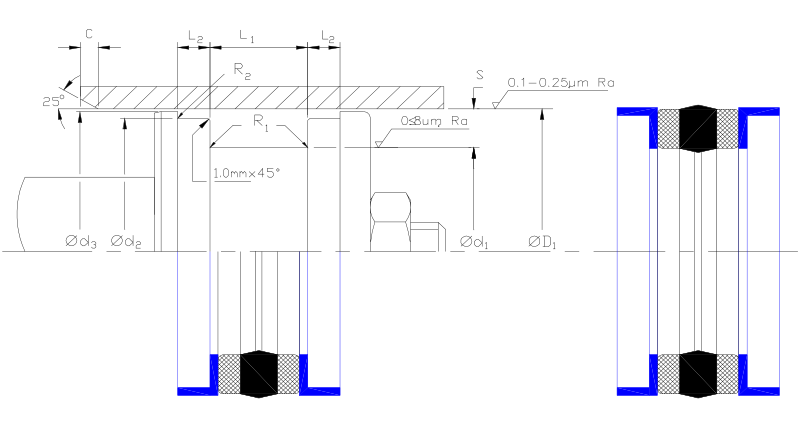

For surface finish and recommended lead in chamfers refer the illustration below. For housing dimensions and machining tolerances refer to the table of recommended sizes and Tolerance Tables for value of tolerence symbols



- Fitting -


For the seal to function correctly, it is important that care be taken in fitting the seal within its housing. For details refer to Seal Installation.
