CPU.../G

Single acting Asymetric AU rod seal.

- Design -


The Claron style CPG.../G is an asymmetrical profiled lip seal designed for medium duty rod applications. Features include an outside diameter specifically designed for static face sealing and a robust inner lip for high performance sealing. Manufactured in a high performance grade of Polyurethane for outstanding abrasion and extrusion resistance combined with flexibility for ease of installation. European and Japanese standard housings are covered in this range.

- Operating Conditions -


Maximum Pressure

Max Speed
Temp. Range
Temp. Range
m/s
-40°C to 80°C
-40°C to 110°C
0,5
280 Bar
250 Bar
0,15
500 Bar
350 Bar
These range perameters are Maximum simultaneous conditions.
Optimum service conditions are affected by temperature, speed, pressure, surface finish and extrusion gaps.

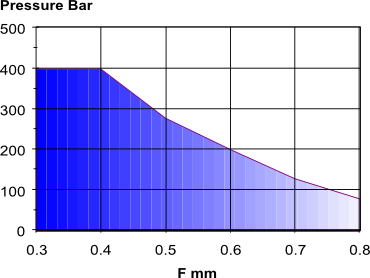

Note: Clearance gap F is the maximum permissable. i.e. gap completely on one side, in the temperature range of -30°C to 80°C
The use of a suitably selected Claron bearing ring will effectively reduce the clearance gap F max. to a value closer to F/2 thus increasing the pressure capability of the seal.




- Housing -

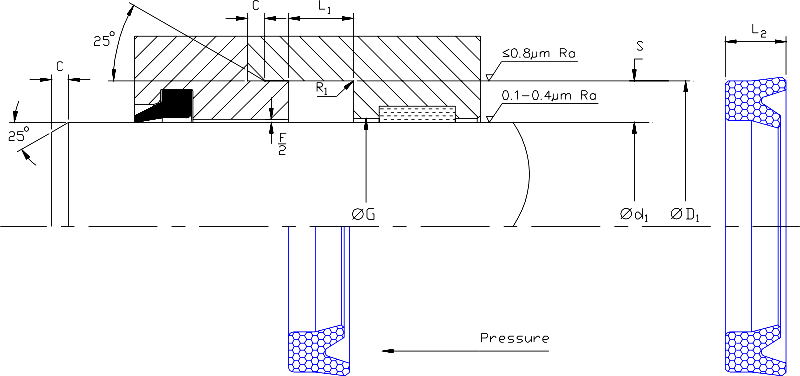

For surface finish and recommended lead in chamfers refer the illustration below. For housing dimensions and machining tolerances refer to the table of recommended sizes and Tolerance Tables for value of tolerence symbols



- Fitting -


For the seal to function correctly, it is important that care be taken in fitting the seal within its housing. For details refer to Seal Installation.
