CSWM/CSW

Single lip MoS2 filled PA medium to heavy duty rod wiper.

- Design -

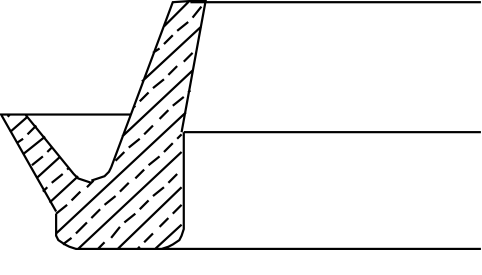

Claron Style CSW Rod wiper is designed to remove more tenacious mud and ice from a reciprocating rod during the negative stroke. It is classified as a heavy duty scraper. The scraper is precision moulded in Nylon (PA) with a filter of MOS2 to improve the friction and wear characteristics of the material. The materials high modulus (stiffness) allow it to aggressively scrape larger debris from the rod. the wiper is designed with an outside sealing lip providing positive sealing on the housing thus preventing dirt and moisture from entering the system around the outside of the wiper.

- Operating Conditions -


Maximum Pressure

Temp. Range
-40°C to 100°C
Max Linear Speed m/s
5
These range perameters are Maximum simultaneous conditions.
Optimum service conditions are affected by temperature, speed, pressure, surface finish and extrusion gaps.

- Housing -

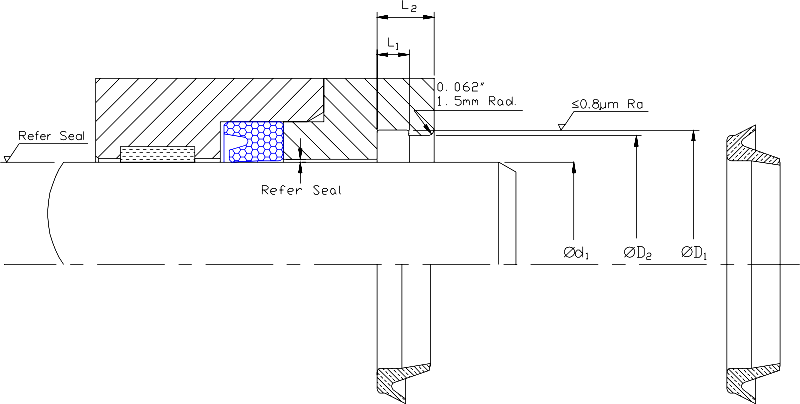

For surface finish and recommended lead in chamfers refer the illustration below. For housing dimensions and machining tolerances refer to the table of recommended sizes and Tolerance Tables for value of tolerence symbols



- Fitting -


Styles CSW & CSWM are designed to snap fit into its housing. For the seal to function correctly, it is important that care be taken in fitting the seal within its housing. For details refer to Seal Installation.
