PMW

Single lip metal cased AU medium to heavy duty Press fit rod wiper.

- Design -


Claron Style PMW metal cased Rod wiper is designed to remove potential system contaminents from a reciprocating rod during the negative stroke. It is classified as a medium to heavy duty rod wiper/scraper. The wiper is precision moulded in 98o Shore Polyurethane with an accurately machined lip. The high modulus (stiffness) of this material allows the wiper to scrape tenatious mud and dirt from the rod. The wiper has a metal case designed to press fit in the housing thus retaining the wiper. The metal case is coated with a corrosion resistant yellow Zinc plating. The press fit design of this wiper allows it to be used in simple 'open ended' housing.

- Operating Conditions -


Maximum Pressure

Temp. Range
-40°C to 110°C
Max Linear Speed m/s
3
These range perameters are Maximum simultaneous conditions.
Optimum service conditions are affected by temperature, speed, pressure, surface finish and extrusion gaps.

- Housing -

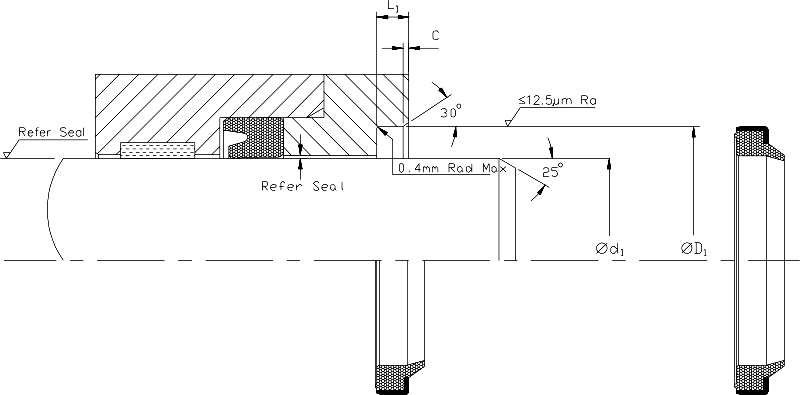

For surface finish and recommended lead in chamfers refer the illustration below. For housing dimensions and machining tolerances refer to the table of recommended sizes and Tolerance Tables for value of tolerence symbols



- Fitting -


Style PMW is designed to press fit into an open ended housing. For the seal to function correctly, it is important that care be taken in fitting the seal within its housing. For details refer to Seal Installation.
